以色列OPHIR激光功率计表头Starlite

以色列OPHIR激光功率计表头Starlite，表头Starlite （7Z11049）

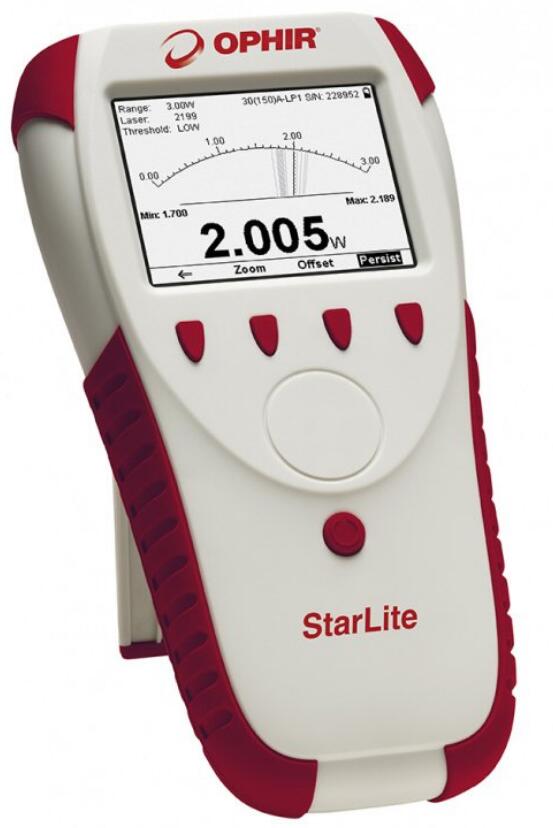

产品名称：以色列OPHIR激光功率计表头Starlite
品牌：OPHIR
型号：starlite
规格：实惠型激光功率计

以色列OPHIR激光功率计表头Starlite
1） 可与所有Ophir公司的热电堆，BeamTrack，PE-C，热释电和光电二极管探头联用；
2）高亮大尺寸TFT 320×240显示屏；
3）便携舒适的手持设计，优化调整支架；
4）数字或模拟指针显示；
5）背光，可更换电池；
6）模拟输出；
7）功率平均功能；
8）可更改显示图表尺度；
9）EMI抗电磁干扰。

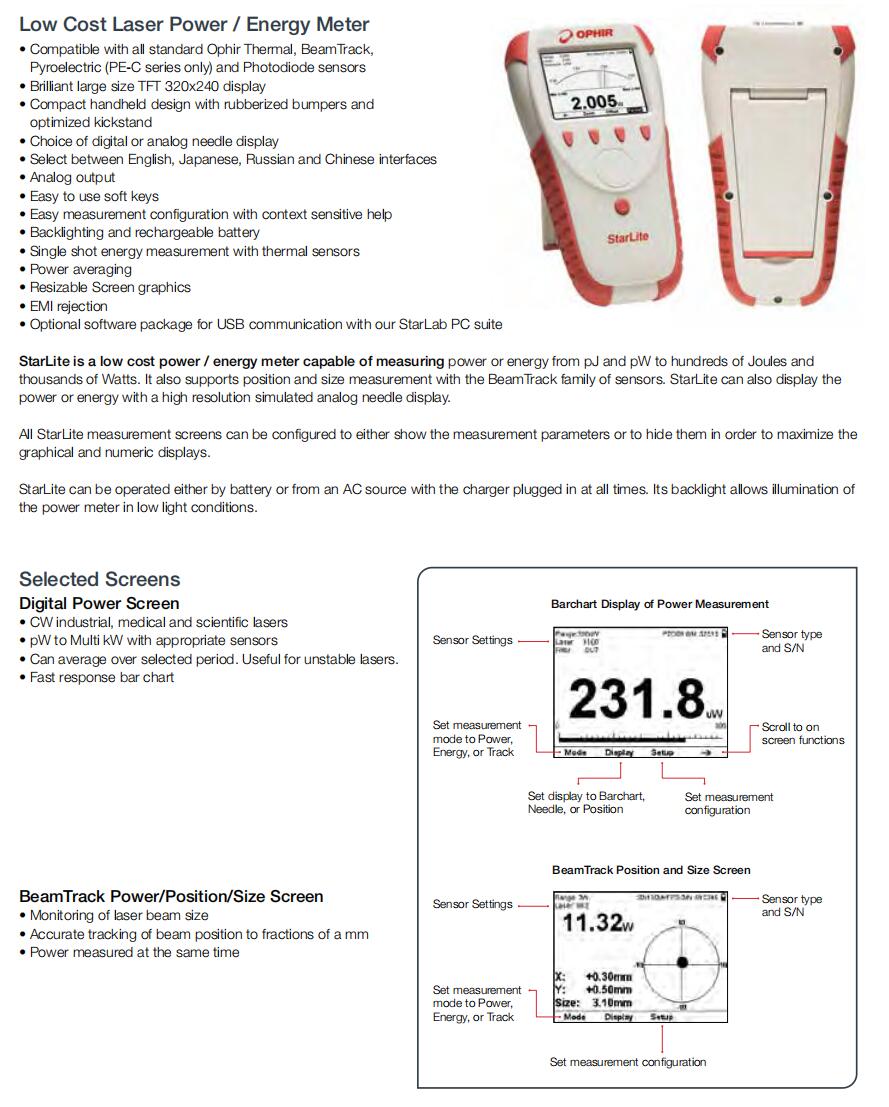

Star Lite Low Cost Laser Power / Energy Meter
• Compatible with all standard Ophir Thermal, BeamTrack, Pyroelectric (PE-C series only) and Photodiode sensors
• Brilliant large size TFT 320x240 display
• Compact handheld design with rubberized bumpers and optimized kickstand
• Choice of digital or analog needle display
• Select between English, Japanese, Russian and Chinese interfaces
• Analog outpu
• Easy to use soft keys
• Easy measurement configuration with context sensitive help
• Backlighting and rechargeable battery
• Single shot energy measurement with thermal sensors
• Power averaging
• Resizable Screen graphics
• EMI rejection
• Optional software package for USB communication with ourStarLab PC suite
StarLite is a low cost power / energy meter capable of measuring power or energy from pJ and pW to hundreds of Joules and thousands of Watts. It also supports position and size measurement with the BeamTrack family of sensors. StarLite can also display the power or energy with a high resolution simulated analog needle display.
All StarLite measurement screens can be configured to either show the measurement parameters or to hide them in order to maximize the graphical and numeric displays.
StarLite can be operated either by battery or from an AC source with the charger plugged in at all times. Its backlight allows illumination of the power meter in low light conditions.
