IRM100可编程红外发射器

IRM100可编程红外发射器
IRM100 IRM 100可编程黑体源
内外调制直流-100赫兹
消除对外部斩波器的需求
1~20μm光谱输出
0到750°C可调输出
自校准
USB驱动和编程
紧凑尺寸1.75“平方x0.75
IRM 100是一个易于使用，紧凑，可编程的红外黑体源，供研究人员，原始设备制造商和商业应用。

基于MEMS技术，IRM 100的高速响应时间提供了一个从直流到100 Hz的调制范围-消除了对外部斩波器的需求。对于脉冲操作，IRM 100可以在内部触发，也可以从外部源触发。

IRM 100也是自我校准和运行在一个恒定的电源模式，消除老化的影响，并提供长期稳定和无麻烦的操作。

IRM 100是用户通过USB端口编程的一个简单的ASCII命令集，以控制输出电平，脉冲重复频率，占空比和触发模式。USB端口还为IRM 100提供直流电源。所有设置都在内部保存在非易失性内存中。


Home › Programmable IR Emitters Programmable IR Emitters

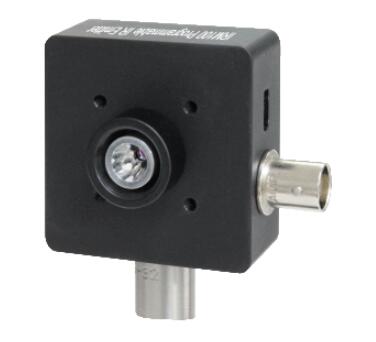

IRM100 Programmable Black Body Source
Internally or Externally Modulated DC-100Hz
Eliminates Need for External Chopper
1 to 20μm Spectral Output
Adjustable Output from 0 to 750°C
Self Calibrated
USB Powered and Programmed
Compact Size 1.75″ square x 0.75
The IRM100 is an easy to use, compact programmable IR black-body source for researchers, OEMs, and commercial applications.

Based on MEMs technology, the high speed response time of the IRM100 provides a modulation range from DC to 100Hz – eliminating the need for an external chopper. For pulsed operation, the IRM100 can be triggered internally or from an external source.

The IRM100 also is self-calibrating and runs in a constant power mode eliminating aging effects and providing long term stability and hassle-free operation.

The IRM100 is user-programmed via the USB port with a simple ASCII command set to control the output level, pulse repetition frequency, duty cycle and trigger mode. The USB port also provides DC power to the IRM100. All settings are saved internally in non-volatile memory.

OEM inquiries welcome.
