Model 262 桌面反射计 Model 262 Reflectometer

Model 262 桌面反射计 Model 262 Reflectometer

262 Console262型反射仪是为光亮电镀工业测量在不同位置的反射率，在旋转铝曲面上，用于路灯和其他反射器。这种紧凑的台式仪器易于使用和简单的校准，从而为生产人员提供了一个快速的手段，以确保质量的反射器正在处理。

仪器采用星载反射率标准校准.测量是通过触摸被测表面的软探针来进行的。反射率立即显示在31/2位亮红色数字仪表上。软探头通过光纤连接到仪器上。大多数反射器被用来照亮一个区域，以提高夜间对眼睛的能见度。因此，反射计具有与眼睛相似的光谱(光)响应。

所述照明源为白光LED，该白光LED被电子斩波(无移动部件)，并同步解调以提供不受室内光线影响的系统。

262型号如下：订购指定型号
262：反射计(单通道)
262(5)：5通道反射计
262 T：透射计(单通道)
262D：漫射透射计
262 T/R： 反射计和透射计


Model 262 桌面反射计 Model 262 Reflectometer

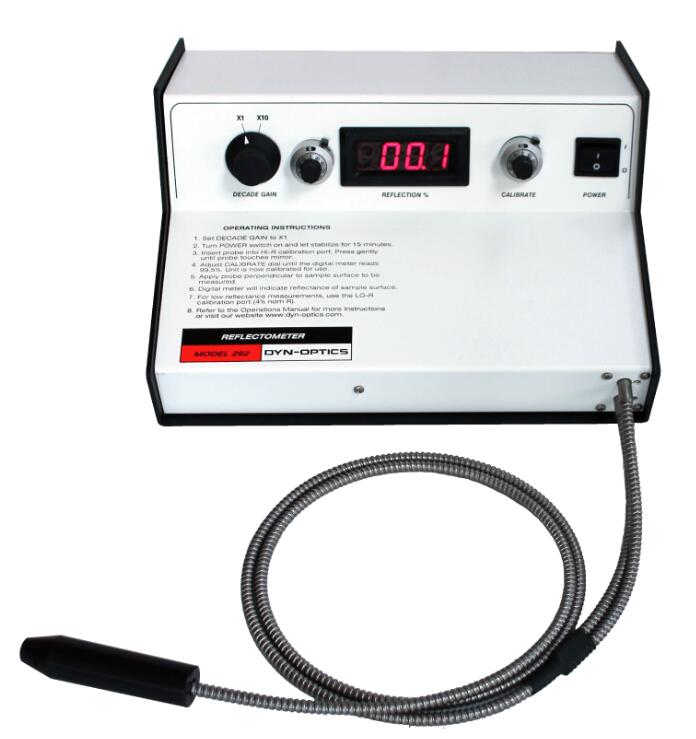

262 Console262 ConsoleThe Model 262 Reflectometer was developed for the Bright Plating industry to measure reflectance at various locations on a spun aluminum curved surface for streetlight and other reflectors. This compact desktop instrument is easy to use and simple to calibrate thereby providing production people with a rapid means to assure quality of the reflectors being processed.

The instrument is calibrated with an on-board reflectance standard. Measurements are made by touching a soft probe to the surface being measured. The reflectance displays immediately on a 31/2 digit bright red digital meter. The soft probe is connected to the instrument by fiber optics. Most reflectors are used to illuminate an area to improve visibility at night for the eye. Thus, the reflectometer has similar spectral (photopic) response as the eye.

The illumination source is a white light LED that is electronically chopped (with no moving parts) and synchronously demodulated to provide a system that is not affected by room light.

The Model 262 is available in the following configurations:

Model：Configuration
262：Reflectometer (single channel)
262(5)：5-Channel Reflectometer
262T：Transmissometer (single channel)
262D：Diffuse Transmissometer
262T/R：Reflectometer & Transmissometer
These modestly priced instruments have been provided to a number of plating facilities in the continental United States and overseas. Call, write, FAX or email for additional technical information, specifications, or price quotation.
